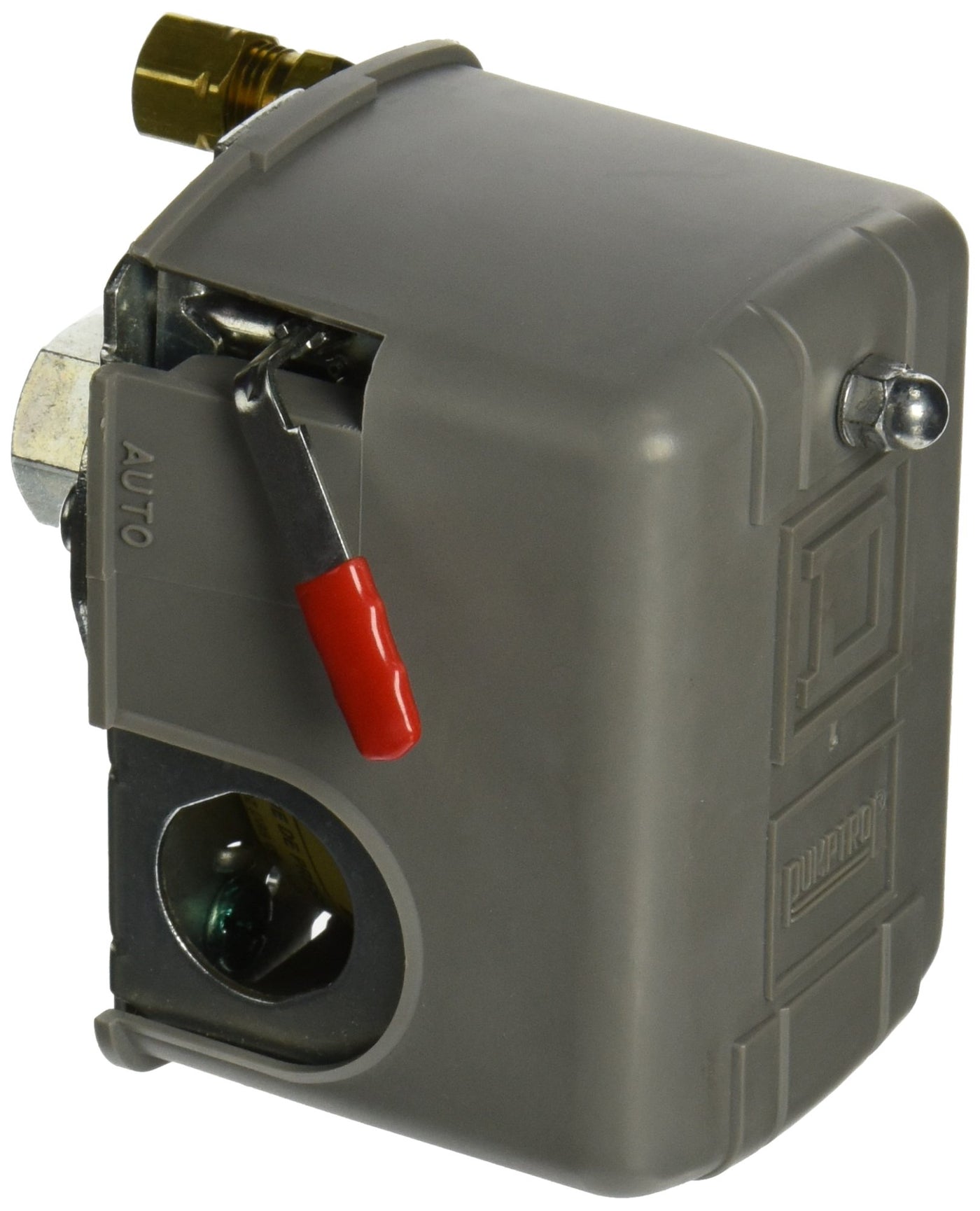

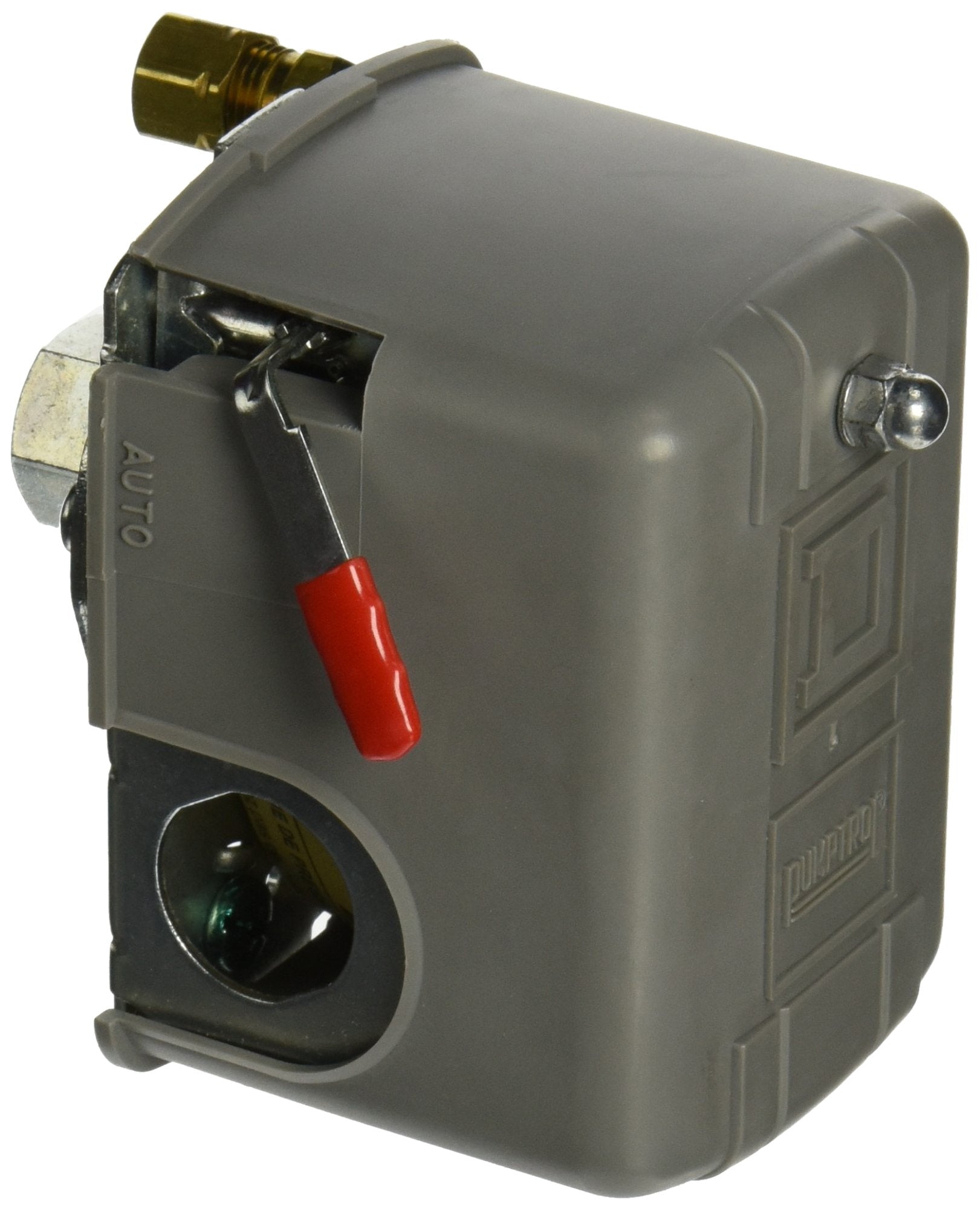

Square D By Schneider Electric 9013Fhg12J52M1X Air-Compressor Pressure Switch, 125 Psi Set Off, 30 Psi Fixed Differential, 14 Np

Product Descriptionthis Square D Pumptrol 9013Fhg12J52M1X Air-Compressor Pressure Switch Controls An Electrically Driven Air Compressor In A Power Circuit When The Adjustable Threshold Upon Falling Is Reached And Is Set To Turn Off At 125 Psi The Switch Has A 14 Npsf Internal Fluid Connection And Is Suitable For Use With A Lower-Horsepower Motor With 15 Hp Or Less The Non-Adjustable Differential Is 30 Psi, And The Adjustable Cut-Out Range Is 70-150 Psi The Switch Is Diaphragm Actuated And Has A Fixed Differential The Threshold, Or Setting Point, Upon Rising Adjusts With A Screw Nut The Switch Has Screw Terminal Electrical Connections, And Two 2-Pole Nc Contacts Open On Rising Pressure The Enclosure Is National Electrical Manufacturers Association (Nema) Type 1 And Ingress Protection (Ip) 20 Rated The Switch Is Underwriters Laboratories (Ul) Listed And Canadian Standards Organization (Csa) Certified This Switch Includes A 2-Way Pressure Release Valve The Maintained Manual Cut-Out Lever Has Auto And Off Positions Square D Pumptrol Pressure Switches Are Manufactured By Schneider Electricfrom The Manufacturerwarning: This Product Can Expose You To Chemicals Including Lead And Lead Compounds, Which Are Known To The State Of California To Cause Cancer And Birth Defects Or Other Reproductive Harm For More Information Go To Wwwp65Warningscagov
