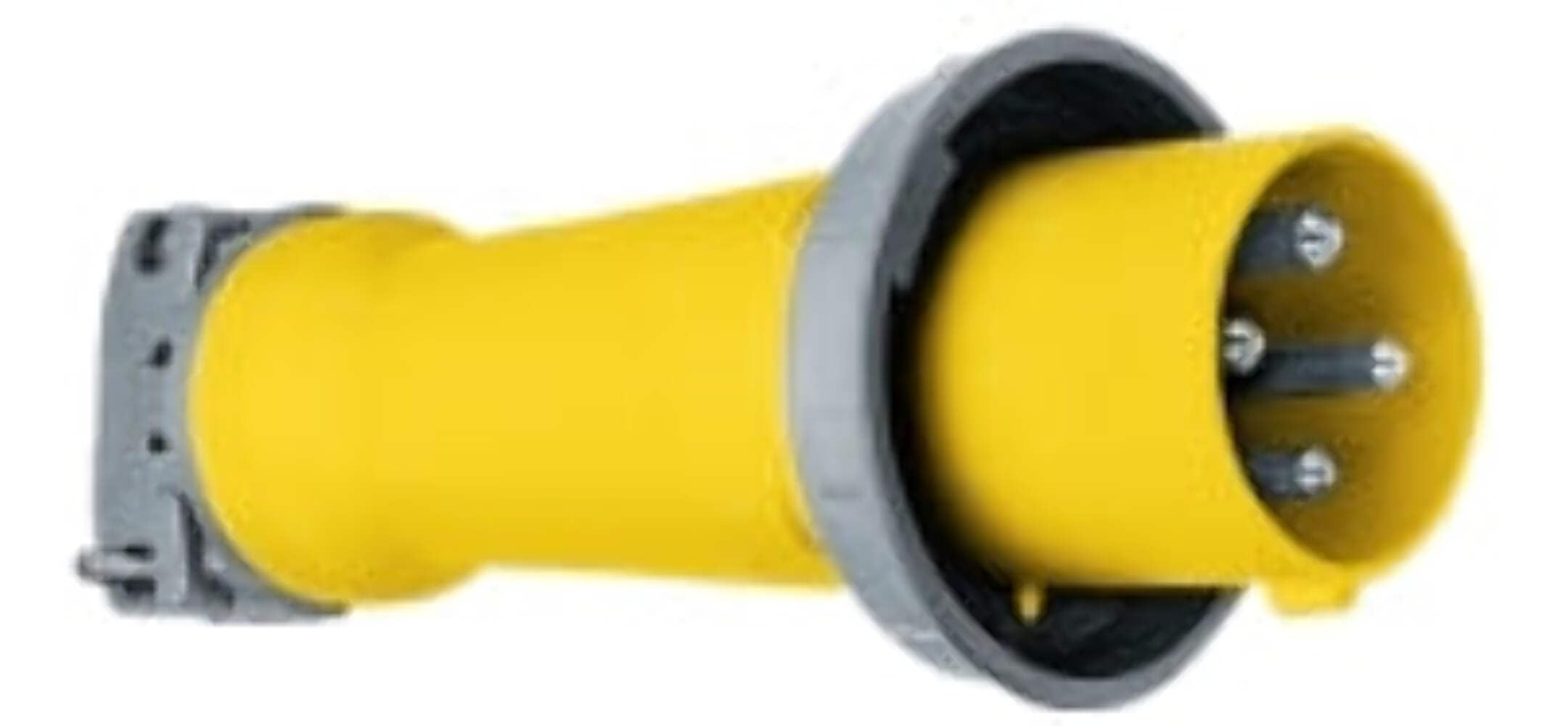

Hubbell M4100P12 100A 125/250V Male Plug

Hubbell Marine was the first to offer 100 amp marine grade devices that are considered second to none. Hubbell developed the standard for 100 amp Pin and Sleeve devices with the National Electric Code and the American Boat and Yacht Council. Only Hubbell offers 3 4 and 5 wire 100 amp cable sets for your shore power requirements. Cable sets manufactured in factory controlled conditions using specially compounded cable to accommodate a full 100 amp. 100 Amp pin and Rugged watertight sleeve devices. UL listed AB02029 YC compliant corrosion resistant. 100 Ampere 125 250 Volt 3 Pole 4 Wire Ship-to-Shore Devices M4100B12R Gray nylon shore power inlet has gasketed spring-loaded cover which closes automatically when not in use and is watertight when securely fastened. Mounting holes are 4.88 in. (123.8) on centers and rear portion has 3.94 in. (100.0) diameter. Mounting screws and gasket included. M4100C12R Yellow Zytel® super tough nylon watertight connector body has gasketed locking ring to make inlet connector interface watertight. Cord grip range is 1.00?1.94 in. (25.4?49.3). Note: This device mates with shore power inlet only. M4100P12 Yellow Zytel® super tough nylon watertight plug has gasketed locking ring to make plug receptacle interface watertight. Cord grip range is 1.00?1.94 in. (25.4?49.3). M4100R12 Gray nylon dockside receptacle has gasketed spring-loaded cover. Closes automatically when not in use and is watertight when securely fastened. Mounting holes are 4.88 in. (123.8) on centers. Mounting screws and gasket included. M4100C12 Yellow Zytel® super tough nylon watertight connector body for mating plug to connector interface on extension cords or adapters. Cord grip range is 1.00?1.94 in. (25.4?49.3). Note: It cannot be mated to the shore power inlet. 100 Ampere 3 Y 120 208 Volt and 3 Y 277 480 Volt 4 Pole 5 Wire Ship-to-Shore Devices M5100B9R Gray nylon shore power inlet has gasketed spring-loaded cover which closes automatically when not in use and is watertight when securely fastened. Mounting holes are 4.88 in. (123.8) on centers and rear portion has 3.94 in. (100.0) diameter. Mounting screws and gasket included. M5100C9R Yellow Zytel® super tough nylon watertight connector body has gasketed locking ring to make inlet connector interface watertight. Cord grip range is 1.00?1.94 in. (25.4?49.3). Note: This device mates with shore power inlet only. BB1001W 15° angle cast aluminum back box has corrosion resistant gray finish and top hub with 1 in. N.P.T. 100A receptacles can be mounted directly to it. BB100N 15° angle non-metallic back box made of high-grade engineered thermoplastic Valox® to resist chemicals abuse and U.V. rays. Has integral grounding plate 1 in. N.P.T. hub size and 120 cu. in. capacity (hub is not included - Raco part number 1706 is recommended). M5100P9 Yellow Zytel® super tough nylon watertight plug has gasketed locking ring to make plug receptacle interface watertight. Cord grip range is 1.00?1.94 in. (25.4?49.3). M5100R9 Gray nylon dockside receptacle has gasketed spring-loaded cover. Closes automatically when not in use and is watertight when securely fastened. Mounting holes are 4.88 in. (123.8) on centers. Mounting screws and gasket included. M5100C9 Yellow Zytel® super tough nylon watertight connector body for making plug to connector interface on extension cords or adapters. Cord grip range is 1.00?1.94 in. (25.4?49.3). Note: It cannot be mated to the shore power inlet.
