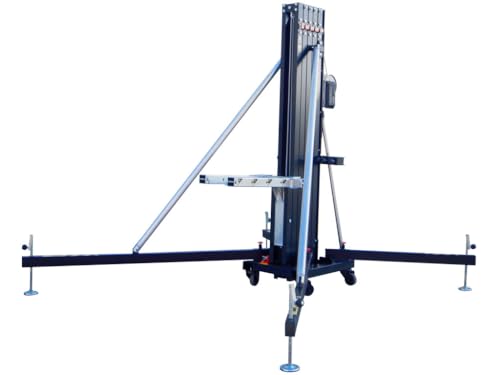

FANTEK Spain Compact Front Loading Lifting Line Array Systems Tower 992 lbs Cap Max Height 22ft Incl Line Array Adapter

ProX XTF-T7045 FANTEK Lifting Tower is Front Loading and allows raising the load from the floor avoiding any single effort and specially designed for a reliable lifting of Line Array Systems of up to 450 Kg in its normal operating mode and 515 Kg in its structural mode to a maximum height of 6.72 meters 22 Ft. This product is perfect to fly line array systems trusses and LED screens. The compact design with castors gives the XTF-FT7045 tower easy handling and maneuverability reducing storage space and it is the ideal solution for touring rental and event production (concerts events trade fair stands stage construction fitting-out discos theaters broadcasting TV etc.). This Compact model is only 6.23ft (1.90 m) folded height. This system includes a XTF-ATF17PA Line Array Adapter W Hanging RingDYNAMIC OVERLAP stacking trusses (4 Masts) are manufactured with extruded aluminum (Alloy: EN-AW according to 6082 T6) and TIG welded by Certified Welders for maximum safety are specially designed to be compact when folded reducing storage space and making it easier to handle. FANTEK towers use a reinforced steel base with outriggers that support heavy loads and greater heights. During lifting the tower telescopic mechanism lift can stop safely at any of the Pin Locking System positions. These pins take the load off the wire rope. DYNSYS is a system designed to guarantee the health and good operation of the tower since it accomplishes many functions all focused on maximizing user safety. Each Dynsys system is adjusted to control the torque that is applied on the winch and when this is exceeded the system acts and does not allow to continue the lifting process.WIREDRIVE is a multidirectional grooved pulley that reduces the wire angle between the winch drum and its entry to the first mast. The steel base provides great stability when the adjustable screw-jacks are well balanced and the bubble level on the base provides accurate leveling. Always secure loads at a locking point and never on the winch alone!< p>
