Crux Radio Replacement With Steering Wheel Control Retention And Dash Kit For '16-'18 Vw Vehi

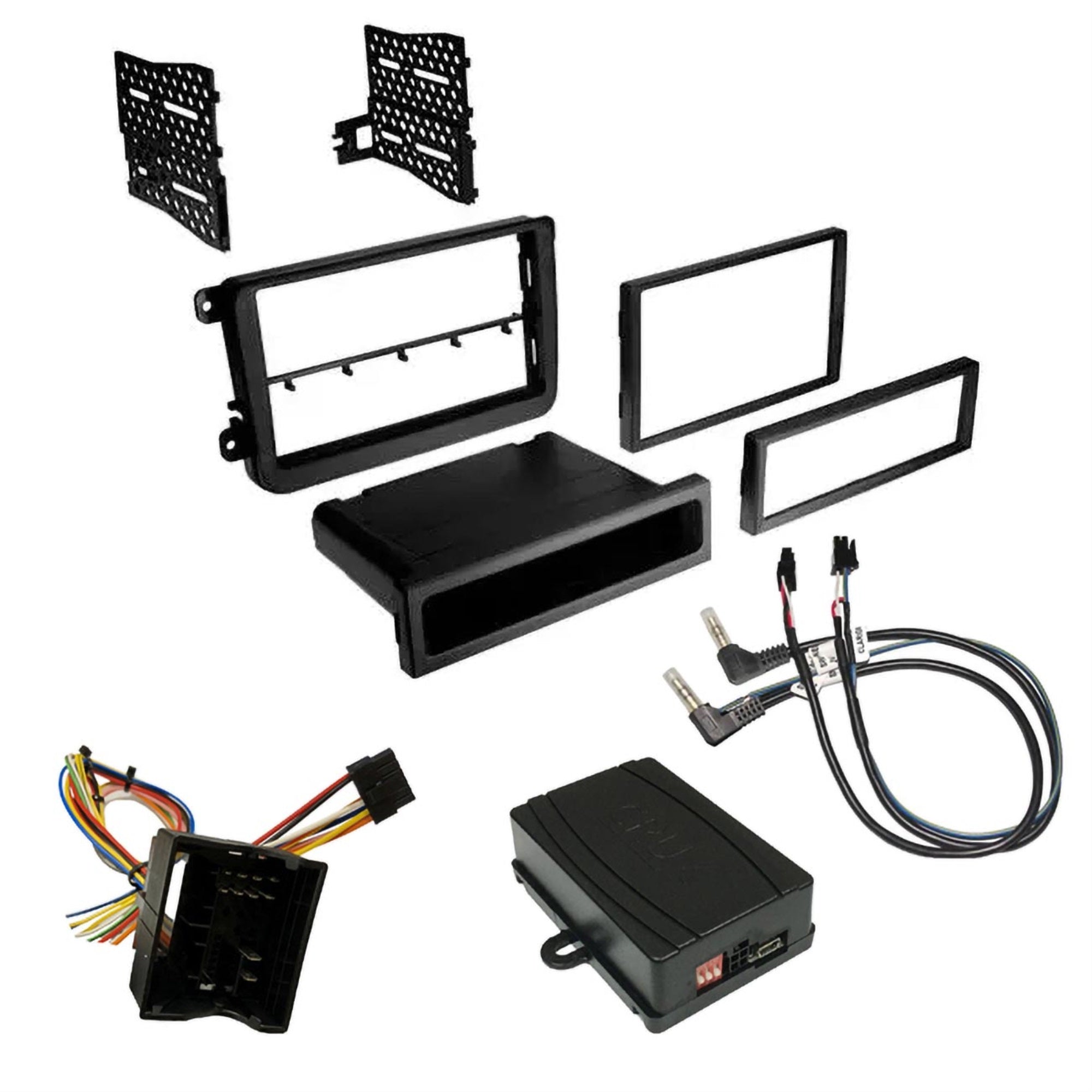

The Crux Dkvw-52 Is A Premium Interface For Select Volkswagen Can Bus Vehicles Which Includes Both A Single Din/Iso With Pocket Dash Kit Or A Double Din Dash Kit. The Dkvw-52 Interface Ensures That You Can Keep The Steering Wheel Audio Controls And The Factory Amplifier (If Present) In Your Volkswagen When You Replace The Factory Radio. Once You Connect This Interface To The Wires On Your New Stereo'S Wiring Harness, You'Ve Covered The Power, Ground, And Factory Speaker Connections For Your New Stereo. The Dkvw-52 Interface Also Offers The Reverse, Illumination, And Vehicle Speed Sensor (V.S.S.) Outputs That You'Ll Need If You'Re Installing A Navigation Receiver. The Crux Interface Is Designed To Work With The Factory Volkswagen Can-Bus Systems.Dash Kit Assembly Diagramdouble Din Installation1. Remove The Left And Right Pocket Support Tabs.2.Attach The Left And Right (Ddmb) Double Din Mounting Bracket To The Mounting Frame.3. Remove The Center Pocket Bracket On The Mounting Frame.4. Insert The (Ddtr) Double Din Trim Ring Into The Mounting Frame. 5. Insert The Aftermarket Radio And Adjust To Desired Fit And Tighten Screws.Single Din Installation1. Attach The Left And Right (Ddmb) Double Din Mounting Bracket To The Mounting Frame.2. Insert Pocket Into Lower Section Of The Mounting Frame.3. Screw The Left And Right (Ddmb) Double Din Mounting Bracket To The Rear Of The Pocket With Provided Screws.4. Insert Radio Sleeve Into Upper Scetion Of Mounting Frame. 5. Insert The Aftermarket Radio And Adjust To Desired Fit.
