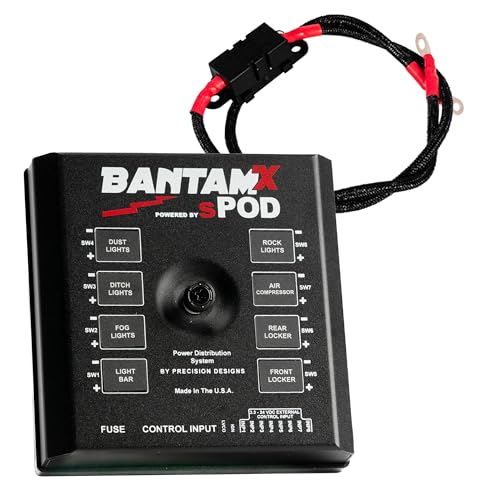

BANTAMX ADDON FOR UNI WITH 36IN BATTERY CABLES MUST HAVE SPOD CONTROLLER

This is an add-on BantamX for existing sPOD systems controllers only! Controller not included. The BantamX will save hours of wiring and installation time! It is a small 8-circuit (expandable) control system that provides a clean (one ethernet cable into the cab!) and safe way to power and control 12 24VDC accessories. Due to the small footprint of the BantamX the placement options are endless! No cutting fishing wires into the cab or tapping into the vehicle's electrical system. It's the perfect over-all solution for all your aftermarket electrical accessories with options unmatched by anyone. Note: At least one sPOD controller must be connected in order for system work work properly.Features: BantamX Add-on for Uni with 36 Inch battery cables Fully programmable digital controlled system 8 circuits rated at 30 amps at 12.5 VDC per circuit 16-position terminal block (easily attach accessories) 2 controller ports (RJ45) for Ethernet cables Integrated low voltage cutoff (LVCO) battery protection w optional override One ATM mini-style fuse for LVCO protection and reset Failsafe self-healing fault protection system (from 1.5 to 30amps) Current-sensing MOSFETs controlled by a microprocessor (no fuses and relays) 50amp auto-resetting circuit breaker Nylon braided battery cables are hi-strand crosslinked copper wire with a silicone jacket Operates on 12VDC or 24VDC 8-position input terminal block for controlling outputs Built-in Bluetooth capabilities for remote control Protection against: overheating over-current shorts reverse polarity and field collapse Ignition control and safety lock-out for switches 1 and 2 (optional) Up to 4 BantamX units can be daisy chained and controlled by one Touchscreen On-demand wireless software updates upgrades Hardware: Powder coated steel base w built in hardware Silicone gasket for weatherproofing Aluminum lid Vehicle specific mounting options Robust insulated base and cover Features Available Through sPOD Mobile App (free): Each switch can be programmed for: Dimming Strobe Flash Momentary Switch Linking On Road and Off Road mode of operation The following features are only available through the purchase of our Pro-Series mobile App: Circuit timers Switch lockout Initial startup current for each circuit is raised to 65amps for 5 seconds Program any circuit to be always on while still maintaining fault protection Option to disable deep sleep mode Selectable auto restart after circuit shuts down from over current short Programmable Current Limiting (in 2amp increments up to 30amps) Selectable auto restart for current limiting shut down Selectable Latch or Momentary actions for inputs Programmable ignition control for all 8 circuits Variable strobe function to create custom flash strobe patterns External Controller Options (not included with system and can only be used in conjunction with an sPOD controller): Third party switches Computers Arduino Raspberry Pi Alpine Audio systems KAC-001 head unit controller Sensors thermostats pressure switches fan controllers and more Bluetooth Requirements: Access to iTunes or Google Play Store to download the sPOD app Bluetooth 4.0 compatible Compatible with Android devices running 8.0 Oreo (API 26) or later Compatible with iOS 11 or newer iPhone 7s or newer iPad 2 or newer iPad mini Must have existing sPOD system< p>
