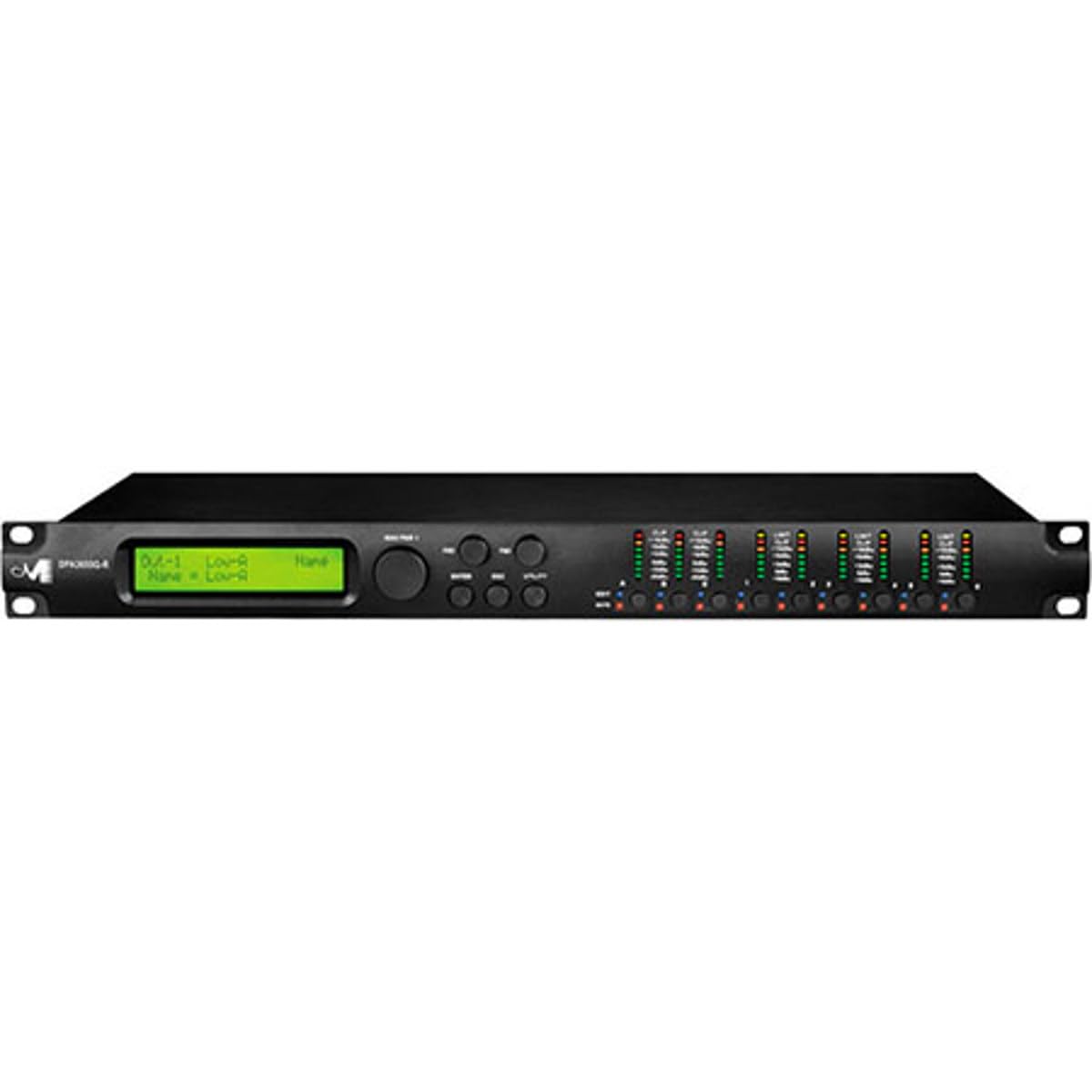

3 Sets In & 6 Sets Out XLR Conference Speaker Computer Controlled Management System & Matrix Mixer

3 input x 6 output Speaker Processor. The activity of the 3 inputs is displayed by rows of 6 level LEDs plus 1 clip LED the activity of the 6 outputs is displayed by rows of 5 level LEDs plus 1 clip LED plus 1 Limiter LED. The unit has 3 analog inputs a stereo digital input & 6 analog outputs. Each input has 5 parametric filters & each output has 5 parametric filters. All the input & output filters can be selected to be Bell first and second Order Shelvings w -3dB at cutting Frequency Symmetrical Shelving w variable Q High Pass Low Pass w variable Q 1st 2nd Order All Pass (90 180Deg. Phase rotation at the cutting Frequency) Bandpass & Notch. The outputs X-Over section has Butterworth Linkwitz Reyleigh & Bessel filters up to 24dB Oct or Custom selectable High Pass Low Pass up to 24dB Oct configurable by the user as cascade of IInd Order cells adjustable in Freq & Q. On Outputs are available a RMS compressor w selectable Ratio up to 32:1 & adjustable Soft Hard Knee & an Output Peak Limiter w THR in Vp or dB< p>
