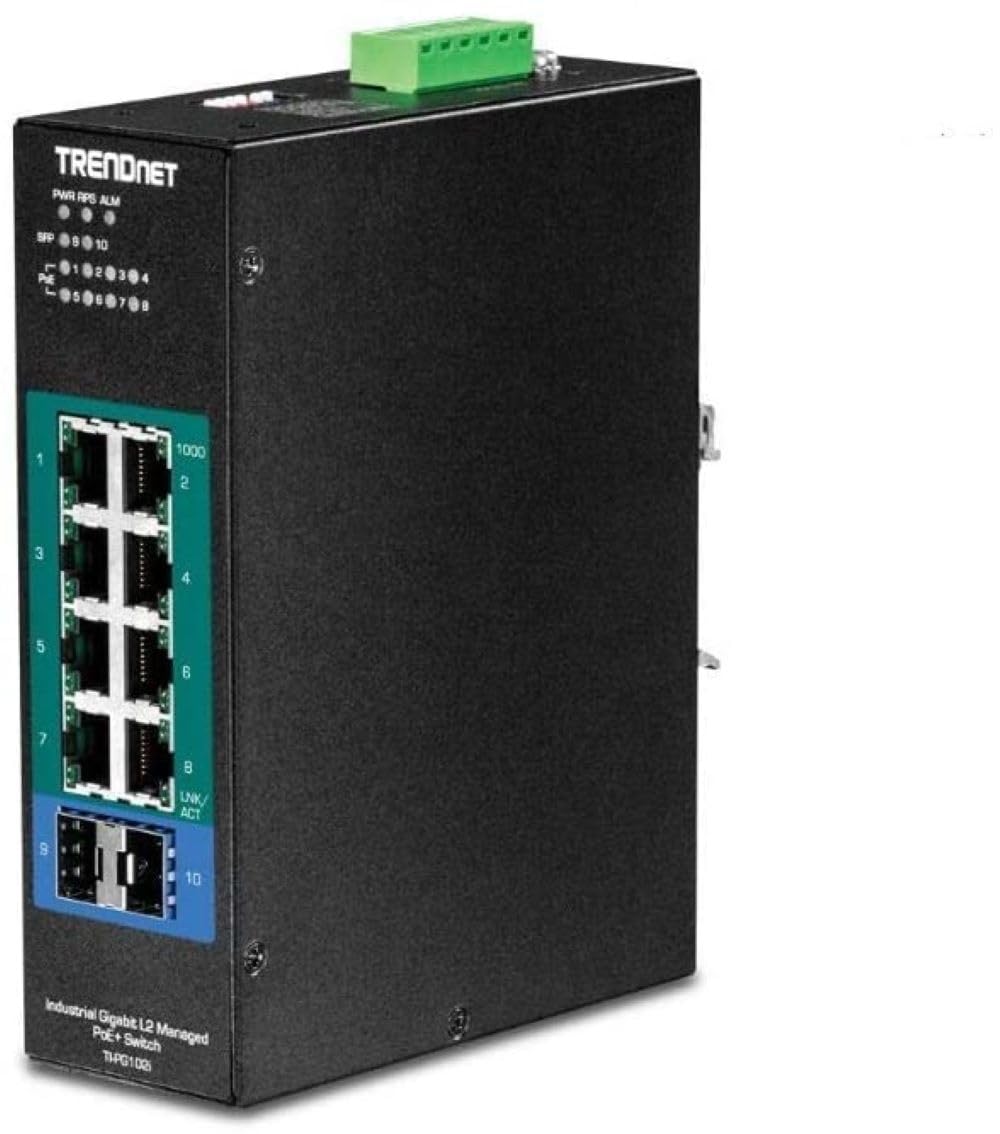

10PORT MANAGED POE+ DIN-RAIL

10PORT MANAGED POE+ DIN-RAIL - 5ZV175 by TRENDNET - BUSINESS CLASS . SWITCH 24-57V INDUSTRIAL GIGABIT L2 TRENDnet's 10-Port Industrial Gigabit L2 Managed PoE+ DIN-Rail Switch model TI-PG102i features eight Gigabit PoE+ ports with a 240W PoE budget and includes two SFP slots that support both 100Base-FX and 1000Base-FX modules for long distance fiber applications. The hardened switch is equipped with an IP30 rated metal enclosure designed to withstand a high degree of vibration and shock while operating within a wide temperature range of -40 - 75 C (-40 - 167 F) for industrial environments. Advanced traffic management controls troubleshooting and SNMP monitoring support make this a powerful solution for SMB networks. PoE Power A 240W PoE power budget supplies up to eight Power over Ethernet devices and includes advanced PoE port controls such as enabling disabling PoE power priority PD alive check and power scheduling. Integration Flexibility Managed features include access control lists VLAN IGMP snooping QoS RMON SNMP trap and syslog for monitoring and flexible network integration. Industrial Design Equipped with an IP30 rated metal enclosure designed to withstand a high degree of vibration and shock while operating within a wide temperature range of -40 - 75 C (-40 - 167 F) for industrial environments. Network Ports 8 x Gigabit PoE+ ports 2 x Gigabit SFP Slots PoE Power Supplies up to 30W of PoE+ power per port with a 240W power budget Full PoE Control Per Port Available PoE port controls include enabling disabling PoE power priority PD alive check and power scheduling Traffic Management Managed features include 802.1Q MAC amp; Port Isolation VLAN IGMP Snooping per port bandwidth control 802.1p DSCP Queue Scheduling (SPQ WRR) STP RSTP spanning tree and link aggregation for flexible network integration Access Control Managed access control features include ACLs IP-MAC-Port binding ARP inspection 802.1X RADIUS MAC address learning DHCP snooping and IP Source Guard provides layered network access controls System Monitoring Monitoring features include SNMP v1 v2c v3 MIB support SNMP trap RMON Groups (1 2 3 9) SMTP alert syslog port mirroring and SFP DDMI DIN-Rail Mount IP30 rated metal enclosure includes DIN-rail mounting bracket Switching Capacity 20Gbps switching capacity Redundant Power Dual redundant power inputs with overload current protection (power supply sold separately: TI-S24048 TI-S48048 TI-S12024) Alarm Relay Alarm relay output triggered by power failure of primary and or redundant power Jumbo Frame Sends larger packets or Jumbo Frames (up to 10KB) for increased performance Wide Temperature Range A wide operating temperature range of -40 - 75 C (-40 - 167 F) allows for installations in extreme hot or cold environments Shock and Vibration Resistant Rated for shock (EN 60068-2-27) freefall (EN 60068-2-32) and vibration (EN 60068-2-6) Grounding Point Grounding point protects equipment from external electrical surges
