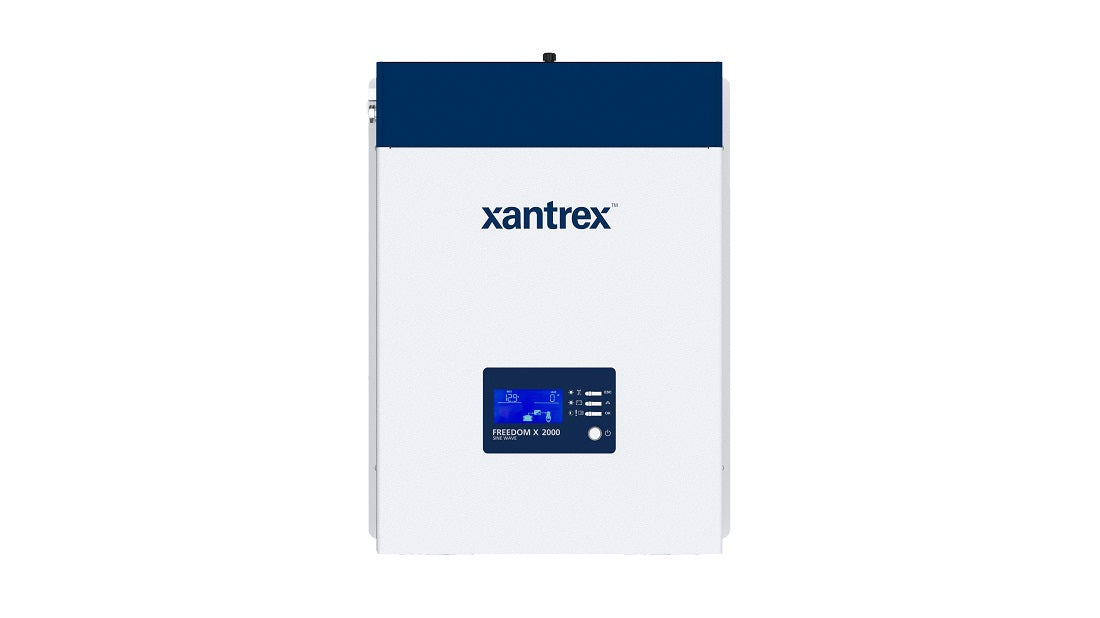

Xantrex Freedom X2000-12 2000W 230V Sine Wave Inverter
Xantrex Freedom X 2000 230V 2000W Inverter
Model: 817-2000-12- Extended Surge Rating: Surges To 2X Continuous Power For At Least 2 Seconds For Motor Loads
- True Sine Wave Ac Power: For Operation Of Sensitive And Motor Loads
- Ignition Control: Feature To Turn Inverter On/Off Via A 12 Vdc Signal And To Minimize Battery Drain By Switching The Inverter Off When The Ignition Key Is Turned Off
- Wide 10-17 Vdc Input Range: Ensures Inverter Operation On High Voltage Alternators Found On Many New Vehicle Chassis
- Programmable Ac Under-Voltage (170-220V) Shutdown: Feature Ideal To Operate Under Weak Shore Power Or Generator Input
- Built In 30A Ac Transfer Relay: Senses When Outside Ac Power Is Present And Transfers The Load From The Inverter To The Source Of Incoming Power
True Sine Wave 120 Vac Inverter With Built-In Transfer Switch. Designed For Recreational And Commercial Applications.. Configure And Monitor System Performance Via Bluetooth App Available On The Optional Bluetooth Remote Panel (# 808-0817-02)
The Freedom X Inverter Offers Premium Performance In A Lightweight Compact Package. It Cranks Out Full Output From -20°C - 40°C For Operation In All Climate Temperatures. The Extended Surge Rating Of The Freedom X Makes It Ideal To Start Difficult Loads Including Fridge And Microwave. The Quick Connect Terminals At Ac In/Out Make Installation A Breeze.
SpecificationsElectrical Specs - Inverter | |
Ac Output Operating Voltage Options | 220/230/240V |
Continuous Output Power | Continuous Power 2000 W @40 C True Sine Wave (Tsw) |
Continuous Ac Output Current | 8.3 A |
Surge Power | 4000 W (> 2 Sec) |
Frequency (Configurable) | 50 Hz (Or 60 Hz) |
Dc Input Operating Voltage Range | 10.0 - 17.0 V |
Dc Input Max Non-Operating Voltage | 25.2 V |
Dc Input Nominal Voltage (Inverting) | 12.0 V |
Dc Nominal Current At Full Load | 192 A |
Peak Efficiency | 91% |
Full Load Efficiency | > 87.5% |
General Specs | |
Operating Temperature Range | -20 To 60 C, With Output Derated Above 40 °C |
Storage Temperature Range | -40 To 70 C |
Operating Humidity Range | 5 To 95% Rh, Non-Condensing |
Operating Input Ac Pass-Through Voltage Range | 170-280V |
Safe Non-Operating Input Ac Voltage Range | Up To 300V |
Transfer Relay Ac Current Rating | 30 A , 24 A Continous |
L X W X H (Without Flanges) | 370 Mm X 275 Mm X 100 Mm |
L X W X H (With Flanges) | 370 Mm X 305 Mm X 100 Mm |
Net Weight | 7.2 Kgs |
Regulatory Approvals | |
Safety | Ce Marking, Low Voltage Directive Compliant (Marine Installations, Drip Shield, 808-1050) |
Emc | Ce Marking, Emc Directive And Automotive Emc - Regulation 10 R-06 Compliant |
Environmental | Ce Marking, Rohs Directive Compliant |
What'S In The Box:
- Freedom X 2000 230V
- Documentation
- One Set Of Plastic Bushings For Large Dc Cables
- One Pre-Installed Dc Earth Enclosure Lug (Not Shown)
- One Bonding Screw
