Prv 2' Driver 100W

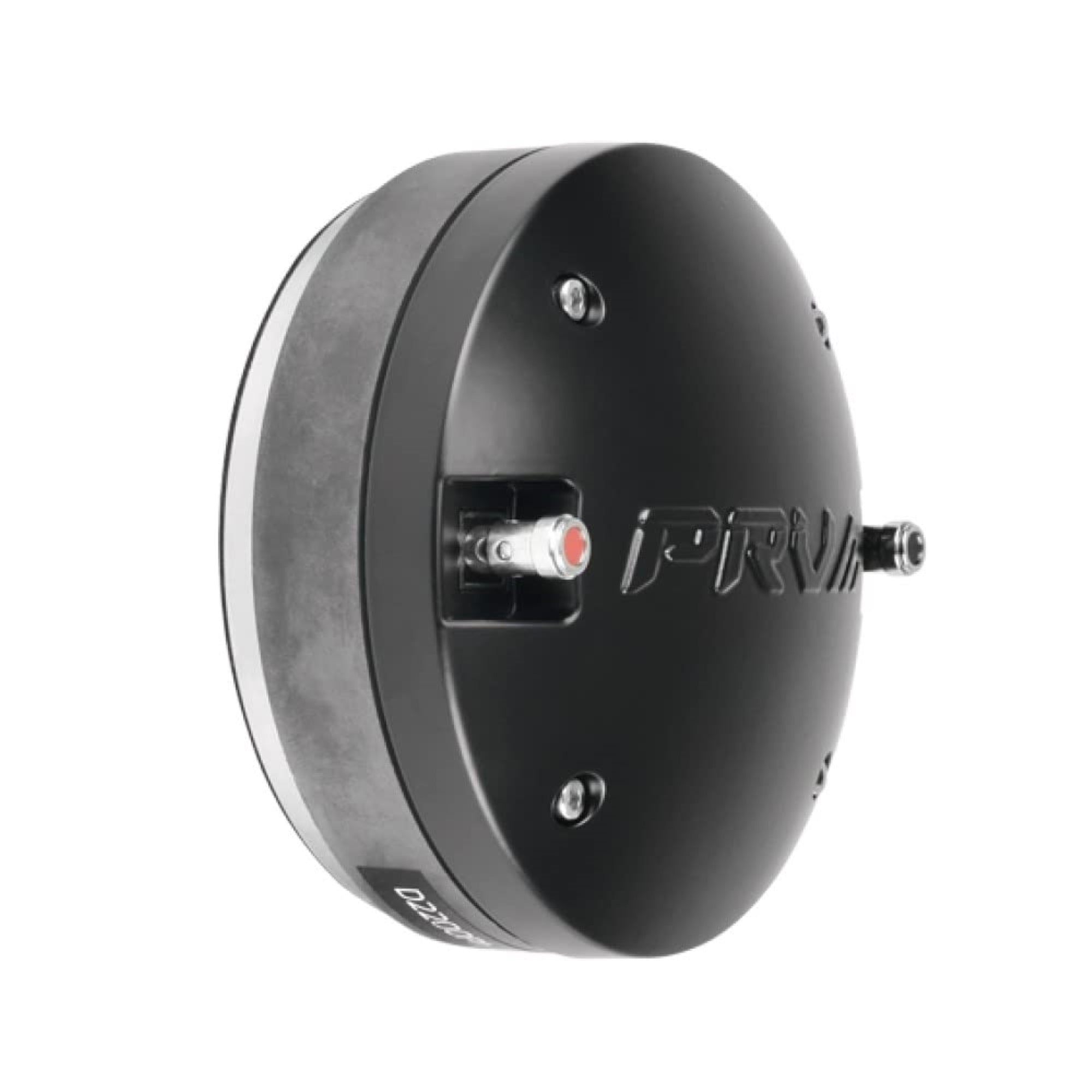

The D2200Ph Is A Compact Solution For Midhigh Vocal Reproduction That Offers High Sensitivity And A Pleasant Sound From The Phenolic Diaphragm. Its High Output And Smooth Midrange Frequency Response Allow You To Use This Horn Driver In Almost Any High Output Audio Application For Vocal Reinforcement: Pro, Home, Car, Or Proaudioonwheels Audio Systems.High Output Mobile Audio Enthusiasts Choose The Prv Audio D2200Ph For Extreme Spl Car Audio Competitions, While Djs Use It In High Spl Speaker Cabinets To Entertaining Crowds.The Small Diameter Of The Driver Allows Front Mounting, Making It Easy To Install, Without Detaching The Driver From Any Horn. The Driver Diameter Measures Only 5.24 Having A Lot Of Clearance To Fit Inside Of The 5.65 Baffle Cut Needed For Our 2 Exit Horns From The Wgp14-50 Series.The Phenolic Diaphragm Is Attached To A 2 Diameter Copper-Clad Aluminum Wire With Kapton Former For A High 100 Watts Rms Power Handling Rating (When Used With The Recommended 500 Hz, 12 Db/Octave High Pass Crossover). An Amazing 109 Db Of Output With Only 1 Watt Of Input Power (2.83V), When Measured At One Meter, Allows The D2200Ph To Be Used In Even The Loudest Of Environments! Mounting Hardware Is Included. Exit Throat Diameter 2 (50 Mm) Nominal Impedance 8 Ohms Rated Aes Power Handling (Rms) 100 Watts Program Power 200 Watts Sensitivity 2.83V At 1M 109 Db Recommended Hipass Crossover** **For Full Power Handling 500 Hz** **12Db Per Octave Crossover Frequency Response At -10Db 500 - 9,000 Hz Voice Coil Diameter 2 (51 Mm) Voice Coil Wire Ccaw Voice Coil Former Material Kapton Diaphragm Material Phenolic Flux Density 1.66 T Magnet Material Ferrite
